Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter

Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter

Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
Lan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe AdapterLan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe AdapterLan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe AdapterLan Network Ethernet Cat5 Camera System Passive Power Injector 48vdc Poe Adapter
CategoriesWall plug adapter
ModelKC-006
Input100-240V
Output48V
output plugRJ45 Plug
JacketABS
short voltage protectionYes
over voltage protectionYes
over current protectionyes
warranty2 years
skypeselina_shy
Output current:0.5a
Unit PriceUS $ 8 / piece
FOB portShenzhen/Hongkong
Terms of PaymentL/C, D/A, D/P, Western Union
Update TimeOctober 2,2023
Detail Information
Features:

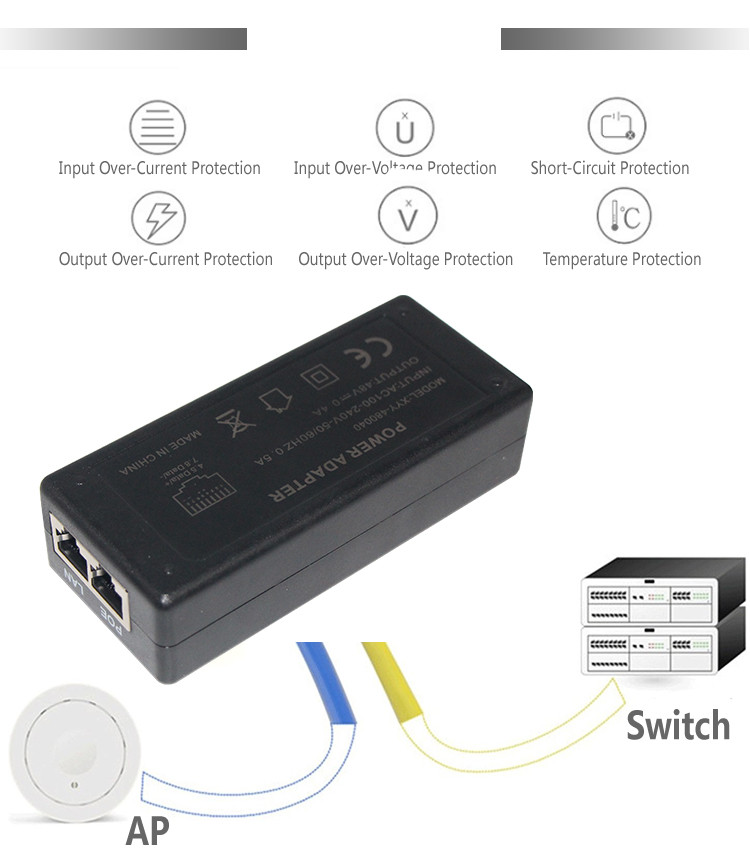

1.Input: AC100-240V 50/60Hz; Output: Data & Power (output voltage: 48V, output current: 0.5A) make it suitable for high-power devices like device, camera, big wireless etc.
2.Short circuit, over-current, and over-voltage protection
3.The actual power arrived to device via RJ45 cable depends on transmission distance and RJ45 cable quality
4.Data In: Connect to network switch or router
5.Package content: 1x 48V 0.5A PoE Injector

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

48v. 0.5A

Output power :

24W

Ripple and Noise :

<120Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection for power adapter

Leakage Current:

<5mA

DC cable   length:

1.5 meters

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE Rohs

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Data connector

 RJ45 +24V pins4&5, Power Return pins7&8

Futures:

Compliant with Isolation and Channel
Characteristics of IEEE802.3af
Data and Power carried over one Ethernet Cable

Application:

IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc…
